148*23 Fire retardant easy to install traditional WPC decking
Product Summary
This commercial-grade layout presents the fire retardant, easy to install traditional WPC decking engineered for high-traffic public plazas, tourist boardwalks, and municipal infrastructure requiring strict safety codes. Integrating eco-friendly halogen-free fire retardants directly into its matrix, it delivers self-extinguishing safety properties that prevent flame spread. Utilizing a specialized modular hidden clip system, it allows rapid, screw-free surface installation that reduces labor hours on site. This overview directly solves the problems of strict fire compliance and time-consuming construction, delivering a highly efficient flooring solution.
About this Product
-
Commercial Fire Retardant Safety
-
Our traditional first-generation WPC decking is engineered with certified fire retardant compound technology. In the event of an accidental fire source, such as dropped BBQ charcoal or cigarettes in public parks, the material actively resists ignition and self-extinguishes, drastically reducing flame spread and hazardous smoke.
-

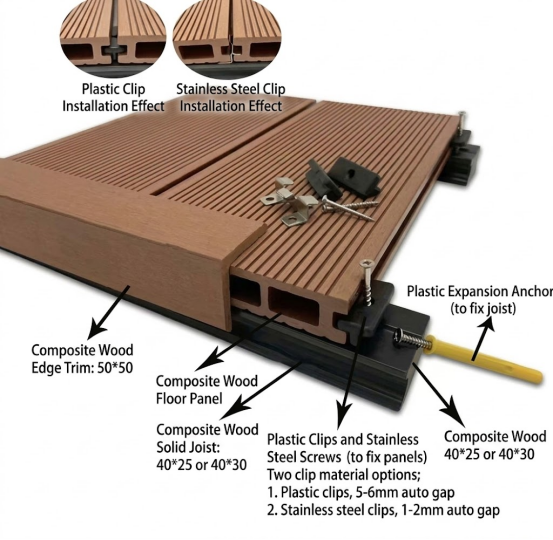

Modular Clip System for Easy to Install Logistics
-
Designed for maximum engineering efficiency, the side-grooved profile works seamlessly with specialized stainless steel or plastic hidden clips. This easy to install mechanism eliminates the need to pre-drill and screw through the board surface, creating a pristine, fastener-free finish while cutting installation labor hours in half.
-
Uniform Structural Density
-
Because the entire board is extruded as a homogenous mix of treated wood fibers and flame-retardant polymers, its strength is uniform throughout. It cuts smoothly on site with standard carpentry power saws, allowing installation crews to perform edge routing and custom perimeter framing with high speed and zero splitting.
Technical Specification
| NO. |
Test Items |
Requirements |
Results |
Test Methods |
| 1 |
Surface abrasion resistance,g/100r |
≤0.15,and the paint film is not worn through |
0.100 |
✔pass |
| 2 |
Colour fastness to light, class |
Gray Card≥4 |
4 |
✔pass |
| 3 |
Formaldehyde emission,mg/m³ |
≤0.05 |
Not detected |
✔pass |
| 4 |
Minimum concentrated load, N |
≥3400 |
3562 |
✔pass |
| 5 |
Static bending strength,MPa |
≥26.0 |
27.2 |
✔pass |
| 6 |
Elastic modulus, MPa |
≥3000 |
4502 |
✔pass |
| 7 |
Water absorption, % |
≤1.0 |
0.9 |
✔pass |
| 8 |
Falling hammer impact at low temperature |
No crackat thetemperature of -10°C |
pass |
✔pass |
| 9 |
Anti-slippery value |
≥35 |
37 |
✔pass |
Certification
How to Install
1. Subframe Spacing (Max 350mm)
Install your joists (wood or aluminum) on a level, draining foundation. Joist spacing must be a maximum of 350mm center-to-center to prevent the deck from sagging.
2. Lock the First Board
Screw Starter Clips into the edge of each joist. Slide the groove of your first WPC board firmly into these clips to lock the outer perimeter without surface screws.
3. Install Center Clips
Slide Hidden Fastening Clips into the inner groove of the board at every joist intersection and screw them down. These clips automatically create the mandatory 5mm side-to-side expansion gap. Slide the next board into place and repeat.
4. Manage End-to-End Joints (Double Joists)
Where two board ends meet:
5. Perimeter Wall Gap & Fascia
Performance Advantages
Colors
Our Factory
FAQ
Q1: What fire rating standard does this fire retardant traditional WPC decking meet?
A1: Our fire retardant composite formula is engineered to meet rigorous building safety codes, typically achieving Class Bfl-s1 or Euroclass B ratings under international flame tests. This guarantees that the deck will actively resist catching fire and release very minimal smoke, making it fully compliant for high-occupancy public areas.
Q2: Does the easy to install clip system hold up well under windy coastal boardwalk conditions?
A2: Yes, perfectly. The hidden clip interlocking system is engineered to distribute heavy wind-uplift forces evenly across the entire frame. When combined with our heavy-duty marine-grade stainless steel clips, the easy to install layout offers superior structural resistance against coastal gales far better than standard top-down wood screws.
Q3: Will the fire retardant additives wash away or lose efficiency after years of heavy rainfall?
A3: No. The fire retardant polymers are fully compound-blended into the raw material mix before extrusion under high pressure and heat. It is a permanent physical structural trait incorporated throughout the core and surface, meaning it cannot leach out, dissolve, or lose its self-extinguishing properties over decades of weathering.
Q4: Do I need specialized commercial machinery for this easy to install decking on a large project?
A4: Not at all. The easy to install profile relies on simple, repeatable modular mechanics. Your installation crew can use standard commercial woodworking tools—such as a miter saw for perfect end cuts, a standard cordless impact drill, and a string line. This keeps tooling overheads extremely low while maximizing deployment speeds.
