192*13 Reliable & Budget-Friendly First-Gen Outdoor WPC Wall Panel
Product Summary
Engineered by compounding premium recycled wood flour with heavy-duty polymer bases, the panel showcases an unpolished, authentic timber tone through its entire profile. As a highly mature architectural material, it delivers dependable resistance against decay, splitting, and unpredictable outdoor weather. Its exceptional cost-efficiency makes it the preferred, budget-friendly cladding choice for massive commercial landscapes, residential facades, perimeter fencing, and exterior renovations.
Product Features
-
Non-Reflective Natural Texture
-
Designed as a traditional outdoor WPC wall panel, it lacks a shiny synthetic topcoat, providing a completely glare-free, matte surface that perfectly mirrors the subtle elegance of raw lumber.
-
Minimum Investment for Maximum Area
-
Standardized Uniform Density
-
Produced through a continuous extrusion process, each panel features a solid internal structure that prevents warping, deep sagging, or bowing under normal outdoor wind loads.
-
Low Long-Term Maintenance Labor
-
It eliminates the endless annual cycle of stripping, oiling, and reapplying chemical chemical water-sealers required by natural timber facades, requiring only basic seasonal washing.
How to Install
Gap is King
Never butt panels tight end-to-end; leave a 2-5mm thermal expansion gap. Always leave 25mm space behind the panels for airflow.
Solid Base
Do not screw directly into concrete. Max joist spacing: 50cm.
Application Gallery
Technical Specification
| No. |
Parameter |
Standard Specification |
Test Method |
| 1 |
Formaldehyde |
E0 Grade (≤ 0.05 mg/m³) or Not Detected |
EN 717-1 / ISO 16000 |
| 2 |
Flexural Strength |
≥ 25 MPa |
ASTM D790 / EN 310 |
| 3 |
Flexural Modulus |
≥ 2,500 MPa |
ASTM D790 |
| 4 |
Brinell Hardness |
≥ 80 MPa |
EN 15534-1 |
| 5 |
Falling Mass Impact |
No cracks, residual indentation ≤ 0.15 mm |
EN 15534-4 |
| 6 |
Water Absorption (24h) |
≤ 0.5%(Excellent waterproof barrier) |
ASTM D1037 / EN 317 |
| 7 |
Moisture Swelling Rate |
Thickness: ≤ 0.9% / Width & Length: ≤ 0.1% |
EN 15534 |
Certification
Colors

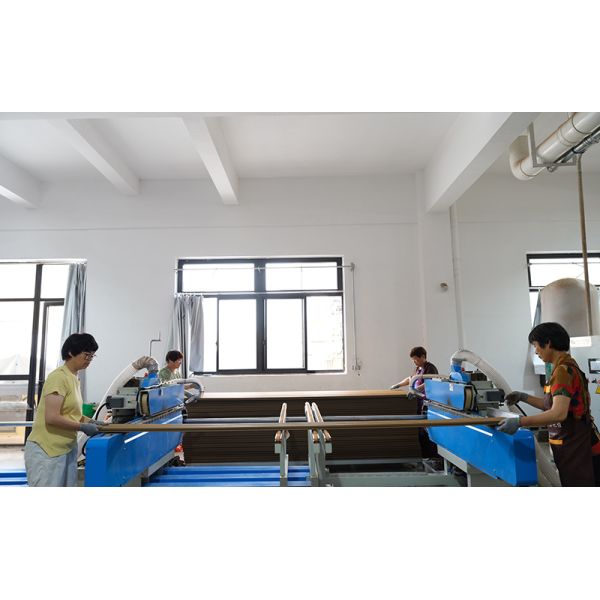

Production Process

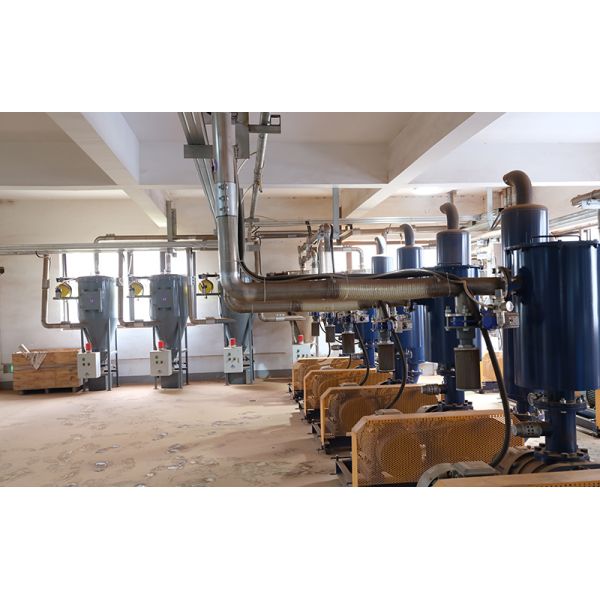

Our Factory
FAQ
Q1: Does this first-generation outdoor WPC wall panel expand when it gets wet?
A1: It has a highly regulated water absorption rate ($le 1%$), which is significantly lower than real wood. While it will not swell like timber, a tiny amount of micro-expansion occurs under heavy rain, which is why installing professional expansion gaps between panels is necessary.
Q2: Can I paint or stain this traditional composite wall panel later if I want a change?
A2: Yes, unlike second-generation co-extruded panels, the first-generation profile features exposed wood flour on the surface. This porous texture allows it to accept specialized, high-quality outdoor WPC primers and stains if you wish to refresh or alter the color years later.
Q3: What causes the color to settle into a lighter tone after a few months outdoors?
A3: This is a natural reaction called "weathering." Sunlight breaks down the natural lignin in the wood flour on the very outer surface. Within 12 weeks, the tone stabilizes into a slightly lighter, beautiful weathered look that will remain consistent for the rest of its life.
Q4: How should I remove light mud or localized stains from the panel surface?
A4: For basic mud, dirt, or organic debris, a soft sponge with warm water and household liquid soap works perfectly. For oil or localized dark stains, use a soft-bristled brush to gently scrub the spot along the direction of the faux wood grain pattern, then rinse clean.
